Getting started: Linear ODE inversion

In this example, we will use SimulationBasedInference in combination with the OrdinaryDiffEq package to recover the true parameter of a simple linear ordinary differential equation:

\[\frac{\partial u}{\partial t} = -\alpha u\]

Of course, this ODE has an analytical solution: $u(t) = u_0 e^{-\alpha t}$ which we could (more efficiently) use to define the inverse problem. However, in order to demonstrate the usage of SimulationBasedInference on dynamical systems more broadly, we will solve the problem using numerical methods.

Precompiling project...
[32m  ✓ [39m[90mUnitful → InverseFunctionsUnitfulExt[39m
[32m  ✓ [39m[90mComponentArrays → ComponentArraysGPUArraysExt[39m
[32m  ✓ [39m[90mAccessors → AccessorsUnitfulExt[39m
[32m  ✓ [39m[90mInterpolations → InterpolationsUnitfulExt[39m
  4 dependencies successfully precompiled in 3 seconds. 474 already precompiled.

First, we load the necessary packages

using SimulationBasedInference
using OrdinaryDiffEq
using Plots, StatsPlots
import Random

extensions

using DynamicHMC

and then initialize a random number generator for reproducibility.

const rng = Random.MersenneTwister(1234);

Now, we will define our simple dynamical system using the general SciML problem interface:

ode_func(u,p,t) = -p[1]*u;
α_true = 0.2
ode_p = [α_true];
tspan = (0.0,10.0);
odeprob = ODEProblem(ode_func, [1.0], tspan, ode_p)

ODEProblem with uType Vector{Float64} and tType Float64. In-place: false
timespan: (0.0, 10.0)
u0: 1-element Vector{Float64}:
 1.0

To solve an inverse (or inference) problem with SimulationBasedInference, we must first define a forward problem. The forward problem consists of two components:

A SciML problem type or forward map function $f: \Theta \mapsto \mathcal{U}$.
One or more "observables" which define the observation operator that transforms the model state to

to something comparable to data.

In this case, we can simply define a function that extracts the current state from the ODE integrator. The SimulatorObservable(name, func, t0, tsave, coords) additionally takes an initial time point, a vector of observed time points, and a tuple specifying the shape or coordiantes of the observable at each time point. Here, (1,) indicates that the state is a one-dimensional vector.

dt = 0.2
tsave = tspan[begin]+dt:dt:tspan[end];
n_obs = length(tsave);
observable = ODEObservable(:y, odeprob, tsave, samplerate=0.01);
forward_prob = SimulatorForwardProblem(odeprob, observable)

SimulatorForwardProblem (ODEProblem) with 1 observables (:y,)

In order to set up our synthetic example, we need some data to condition on. For this example, we will generate the data by running the forward model and adding Gaussian noise.

ode_solver = Tsit5()
forward_sol = solve(forward_prob, ode_solver);
true_obs = get_observable(forward_sol, :y)
noise_scale = 0.05
noisy_obs = true_obs .+ noise_scale*randn(rng, n_obs);

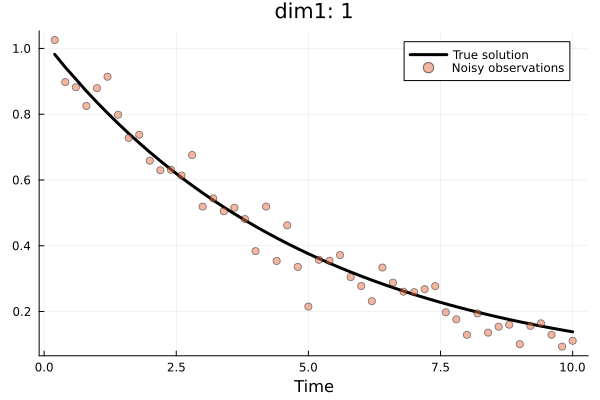

Plot the resulting pseudo-observations vs. the ground truth.

plot(true_obs, label="True solution", linewidth=3, color=:black)
plt = scatter!(tsave, noisy_obs, label="Noisy observations", alpha=0.5)

Here we set our priors. We use a weakly informative Beta(2,2) prior which places less probability mass at the extreme values near zero and one. We could also use a flat prior Beta(1,1) if we wanted to be maximally indifferent to which parameters are most likely.

model_prior = prior(α=Beta(2,2));
noise_scale_prior = prior(σ=Exponential(0.1));

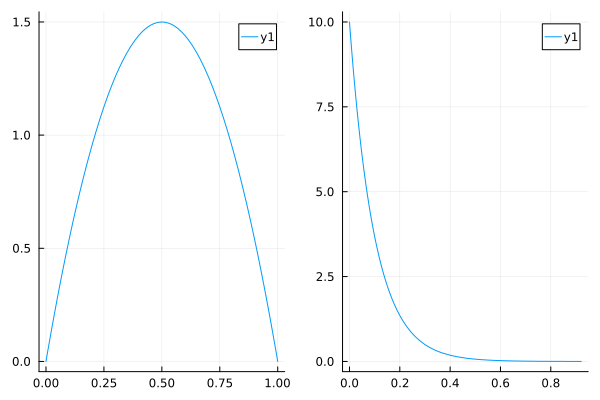

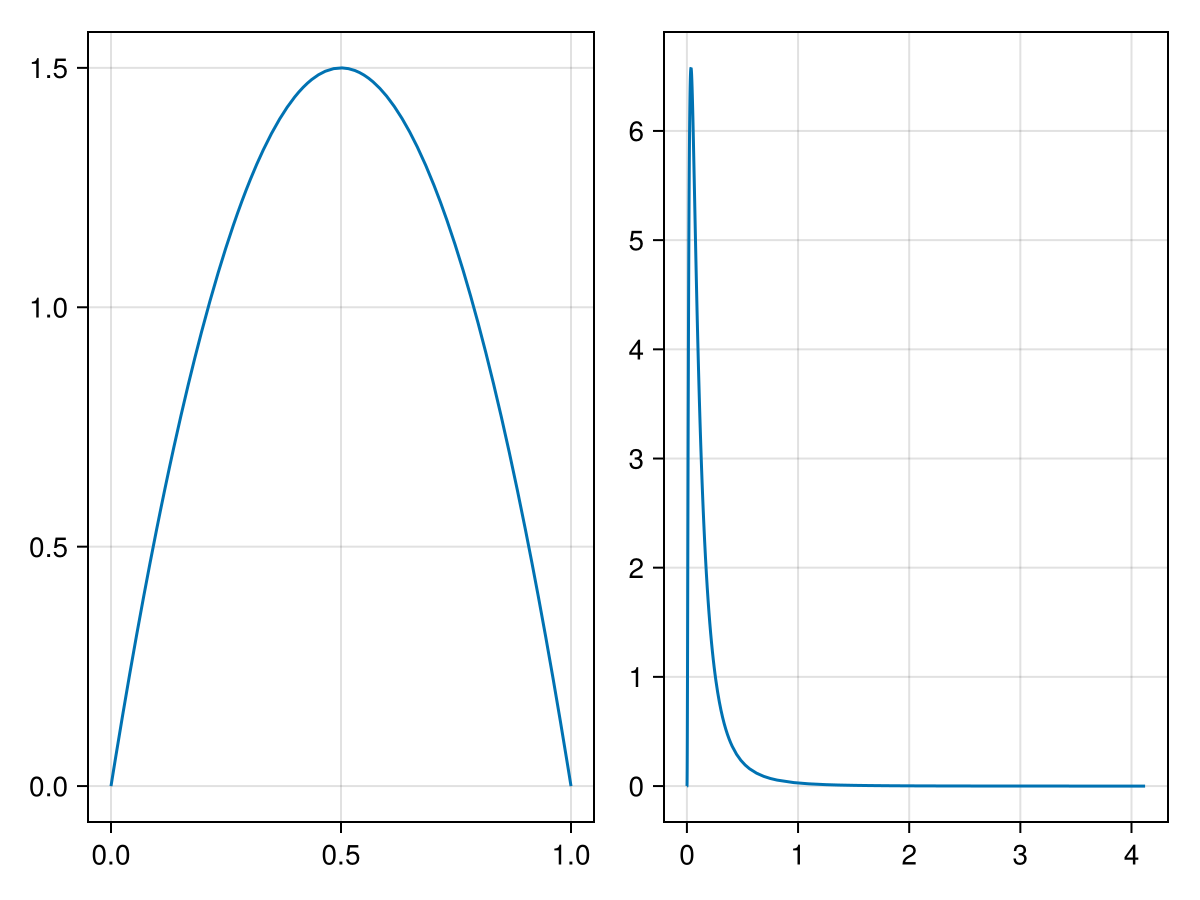

p1 = Plots.plot(model_prior.dist.α)
p2 = Plots.plot(noise_scale_prior.dist.σ)
plt = Plots.plot(p1, p2)

Now we assign a simple Gaussian likelihood for the observation/noise model.

lik = IsotropicGaussianLikelihood(observable, noisy_obs, noise_scale_prior);

We now have all of the ingredients needed to set up and solve the inference problem. We will start with a simple ensemble importance sampling inference algorithm.

inference_prob = SimulatorInferenceProblem(forward_prob, ode_solver, model_prior, lik);
enis_sol = solve(inference_prob, EnIS(), ensemble_size=128, rng=rng);

We can extract the prior ensemble from the solution.

prior_ens = get_transformed_ensemble(enis_sol)
prior_ens_mean = mean(prior_ens, dims=2)[:,1]
prior_ens_std = std(prior_ens, dims=2)[:,1]
prior_ens_obs = Array(get_observables(enis_sol).y);
prior_ens_obs_mean = mean(prior_ens_obs, dims=2)[:,1]
prior_ens_obs_std = std(prior_ens_obs, dims=2)

In contrast to other inference algorithms, importance sampling produces weights rather than direct samples from the posterior. We can use the get_weights method to extract these from the solution.

importance_weights = get_weights(enis_sol);

We can then use these importance weights to compute weighted statistics using standard methods from the Statistics and StatsBase modules. Note that these modules are exported by SimulationBasedInference for convenience.

posterior_obs_mean_enis = mean(prior_ens_obs, weights(importance_weights), 2)[:,1]
posterior_obs_std_enis = std(prior_ens_obs, weights(importance_weights), 2)[:,1]
posterior_mean_enis = mean(prior_ens, weights(importance_weights))

0.20609942412084206

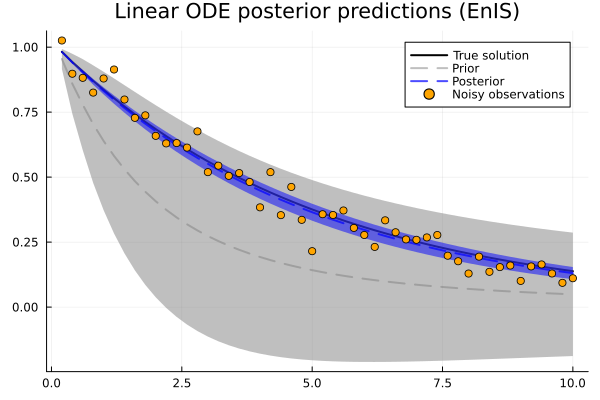

Now we plot the prior vs. the posterior predictions.

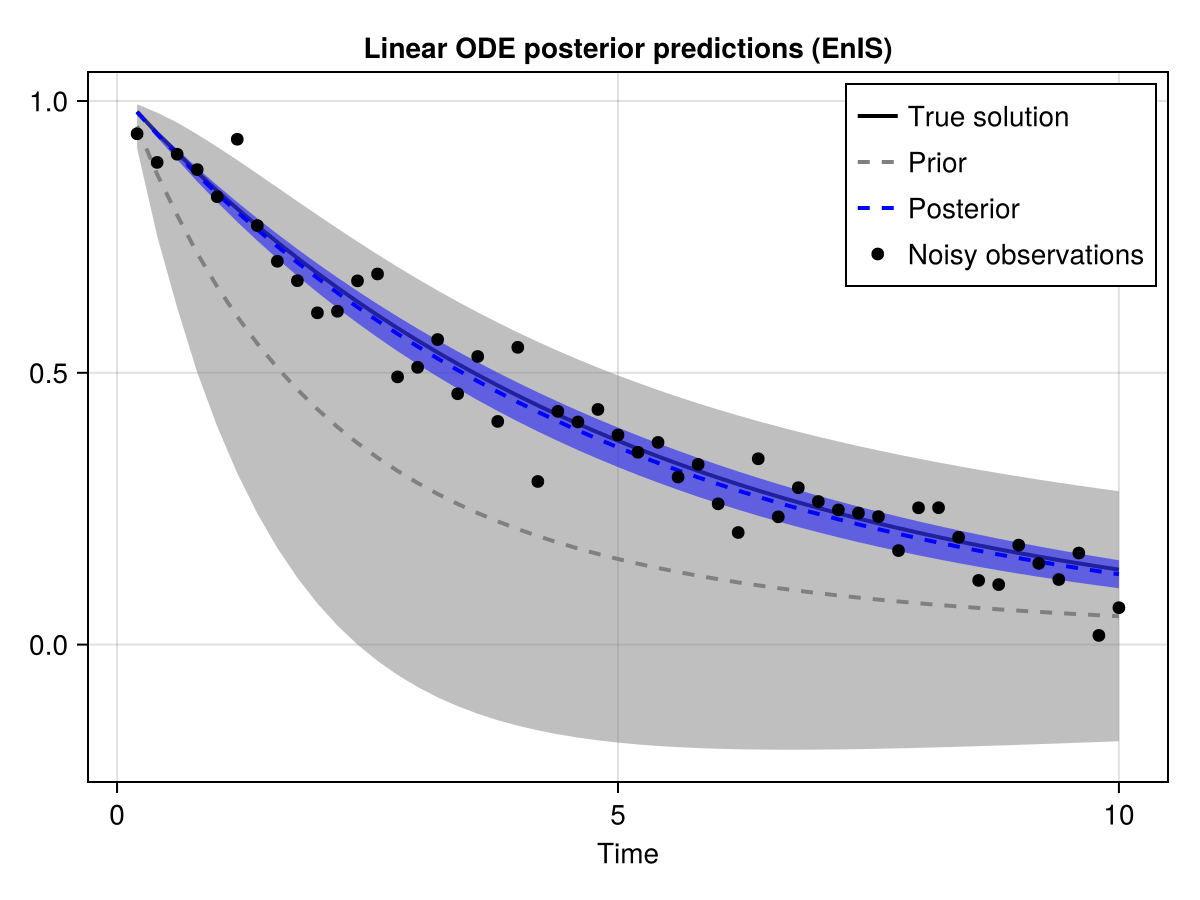

plot(tsave, true_obs, label="True solution", c=:black, linewidth=2, title="Linear ODE posterior predictions (EnIS)")
plot!(tsave, prior_ens_obs_mean, label="Prior", c=:gray, linestyle=:dash, ribbon=2*prior_ens_obs_std, alpha=0.5, linewidth=2)
plot!(tsave, posterior_obs_mean_enis, label="Posterior", c=:blue, linestyle=:dash, ribbon=2*posterior_obs_std_enis, alpha=0.7, linewidth=2)
plt = scatter!(tsave, noisy_obs, label="Noisy observations", c=:orange)

One of the key benefits of the standardized problem type interface is that we can very easily switch to a different algorithm by changing a single line of code. Here, we solve the same inference problem instead with the ensemble smoother w/ "multiple data assimilation" (ES-MDA).

esmda_sol = @time solve(inference_prob, ESMDA(), ensemble_size=128, rng=rng);

 17.218746 seconds (71.95 M allocations: 9.262 GiB, 9.69% gc time)

Now we extract the posterior ensemble and compute the relevant statistics.

posterior_esmda = get_transformed_ensemble(esmda_sol)
posterior_mean_esmda = mean(posterior_esmda, dims=2)

1×1 Matrix{Float64}:
 0.20577335366500754

Plotting the predictions shows that we get a much tighter estimate of the posterior mean.

posterior_obs_esmda = get_observables(esmda_sol).y
posterior_obs_mean_esmda = mean(posterior_obs_esmda, dims=2)[:,1]
posterior_obs_std_esmda = std(posterior_obs_esmda, dims=2)[:,1]

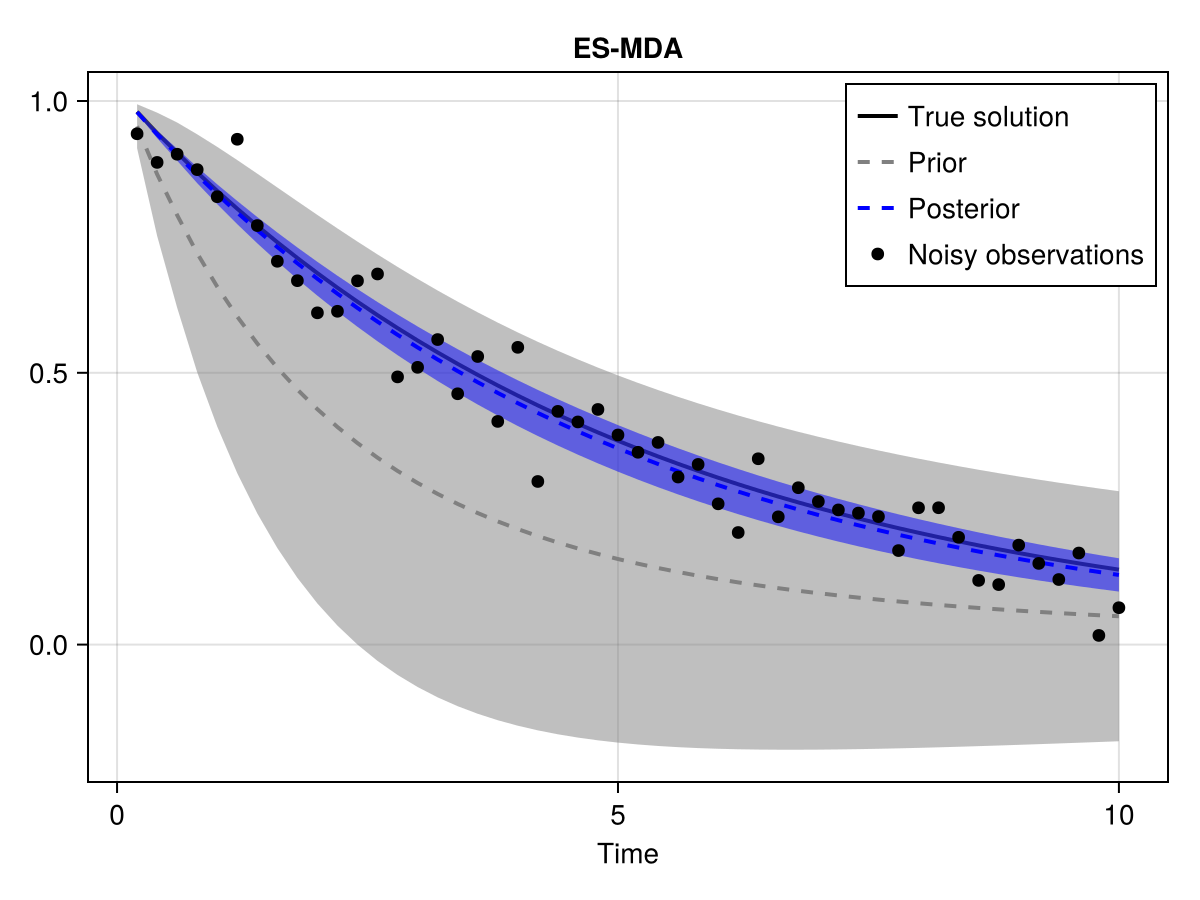

plot(tsave, true_obs, label="True solution", c=:black, linewidth=2, title="ES-MDA")
plot!(tsave, prior_ens_obs_mean, label="Prior", c=:gray, linestyle=:dash, ribbon=2*prior_ens_obs_std, alpha=0.5, linewidth=2)
plot!(tsave, posterior_obs_mean_esmda, label="Posterior", c=:blue, linestyle=:dash, ribbon=2*posterior_obs_std_esmda, alpha=0.7, linewidth=2)
plt = scatter!(tsave, noisy_obs, label="Noisy observations", c=:black)

We can again solve the same problem with the Ensemble Kalman Sampler of Garbuno-Inigo et al. (2020) which yields very similar results (in this case).

eks_sol = @time solve(inference_prob, EKS(), ensemble_size=128, rng=rng, verbose=false)
posterior_eks = get_transformed_ensemble(eks_sol)
posterior_mean_eks = mean(posterior_eks, dims=2)
posterior_obs_eks = get_observables(eks_sol).y
posterior_obs_mean_eks = mean(posterior_obs_eks, dims=2)[:,1]
posterior_obs_std_eks = std(posterior_obs_eks, dims=2)[:,1]

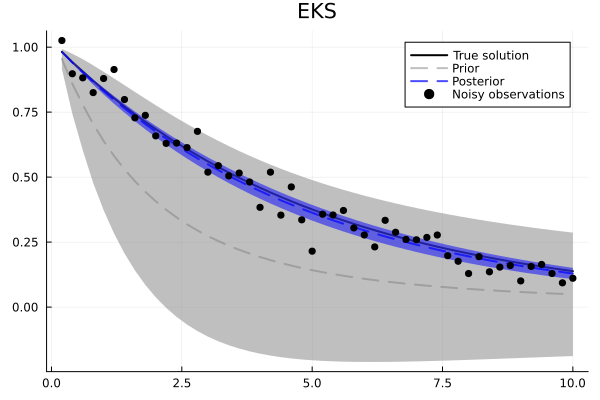

plot(tsave, true_obs, label="True solution", c=:black, linewidth=2, title="EKS")
plot!(tsave, prior_ens_obs_mean, label="Prior", c=:gray, linestyle=:dash, ribbon=2*prior_ens_obs_std, alpha=0.5, linewidth=2)
plot!(tsave, posterior_obs_mean_eks, label="Posterior", c=:blue, linestyle=:dash, ribbon=2*posterior_obs_std_eks, alpha=0.7, linewidth=2)
plt = scatter!(tsave, noisy_obs, label="Noisy observations", c=:black)

Now solve using the gold standard No U-turn sampler (NUTS). This will take a few minutes to run. Note that this would generally not be feasible for more expensive simulators.

hmc_sol = @time solve(inference_prob, MCMC(NUTS()), num_samples=1000, rng=rng);
posterior_hmc = transpose(Array(hmc_sol.result))
posterior_mean_hmc = mean(posterior_hmc, dims=2)
posterior_obs_hmc = reduce(hcat, map(out -> out.y, hmc_sol.storage.outputs))
posterior_obs_mean_hmc = mean(posterior_obs_hmc, dims=2)[:,1]
posterior_obs_std_hmc = std(posterior_obs_hmc, dims=2)[:,1]

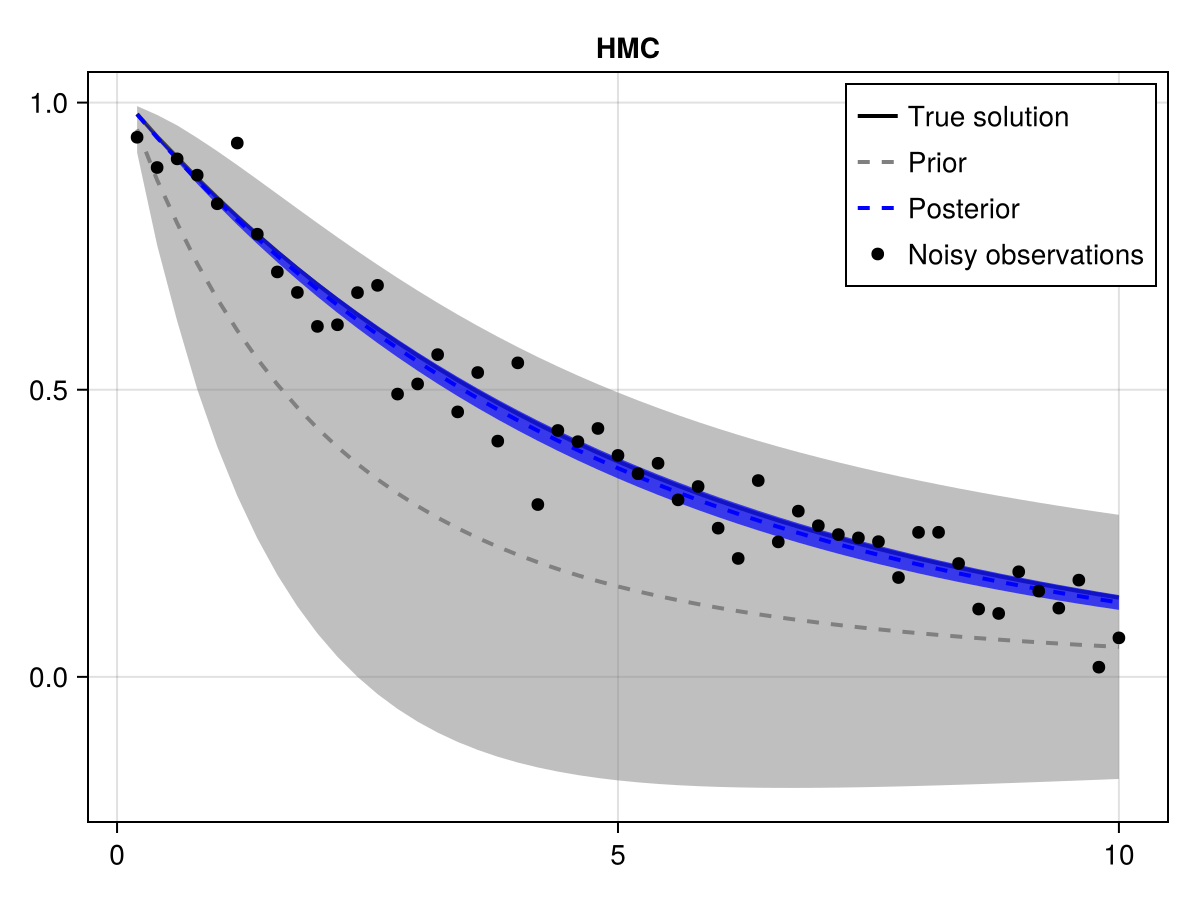

plot(tsave, true_obs, label="True solution", c=:black, linewidth=2, title="EKS")
plot!(tsave, prior_ens_obs_mean, label="Prior", c=:gray, linestyle=:dash, ribbon=2*prior_ens_obs_std, alpha=0.5, linewidth=2)
plot!(tsave, posterior_obs_mean_hmc, label="Posterior", c=:blue, linestyle=:dash, ribbon=2*posterior_obs_std_hmc, alpha=0.7, linewidth=2)
plt = scatter!(tsave, noisy_obs, label="Noisy observations", c=:black)

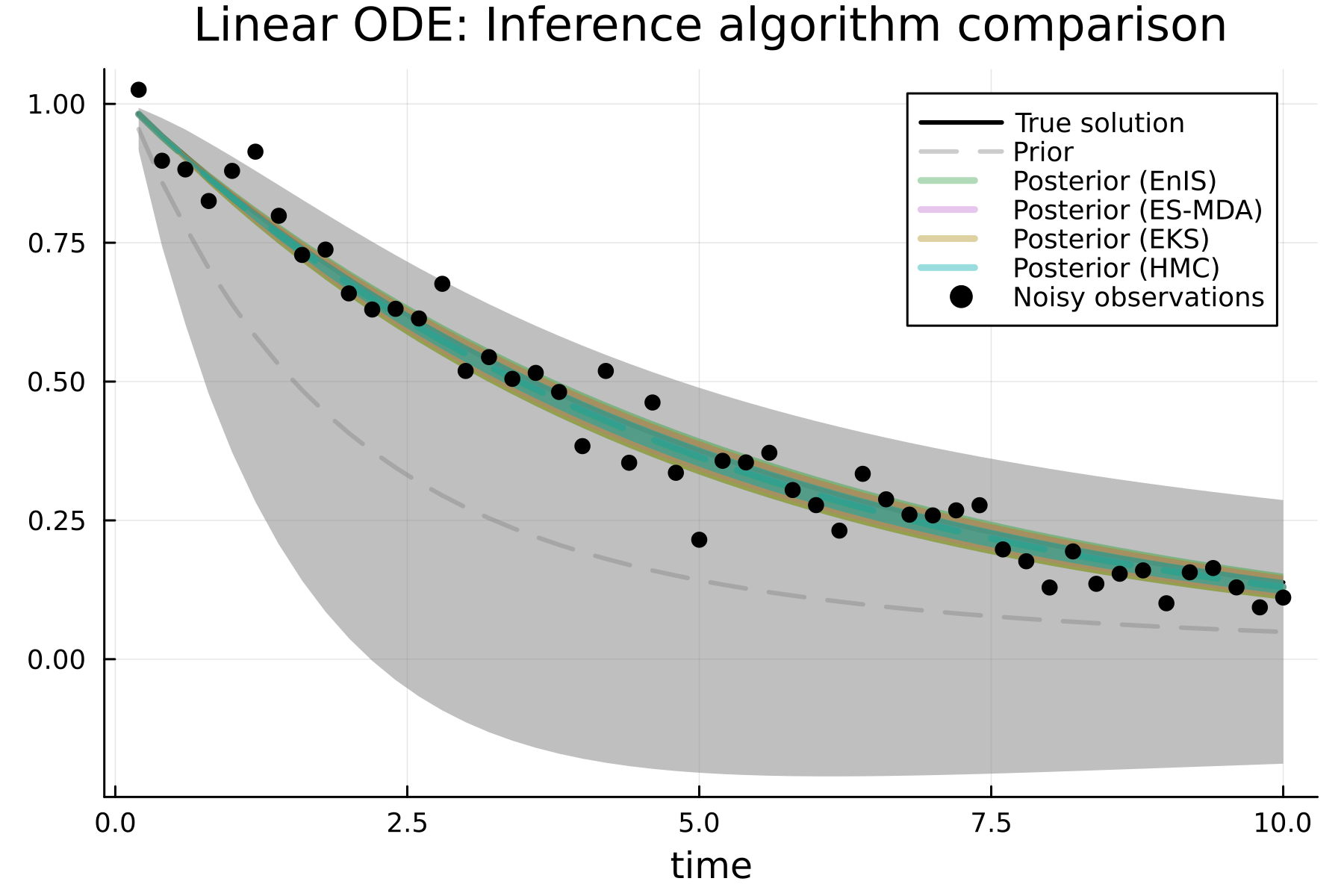

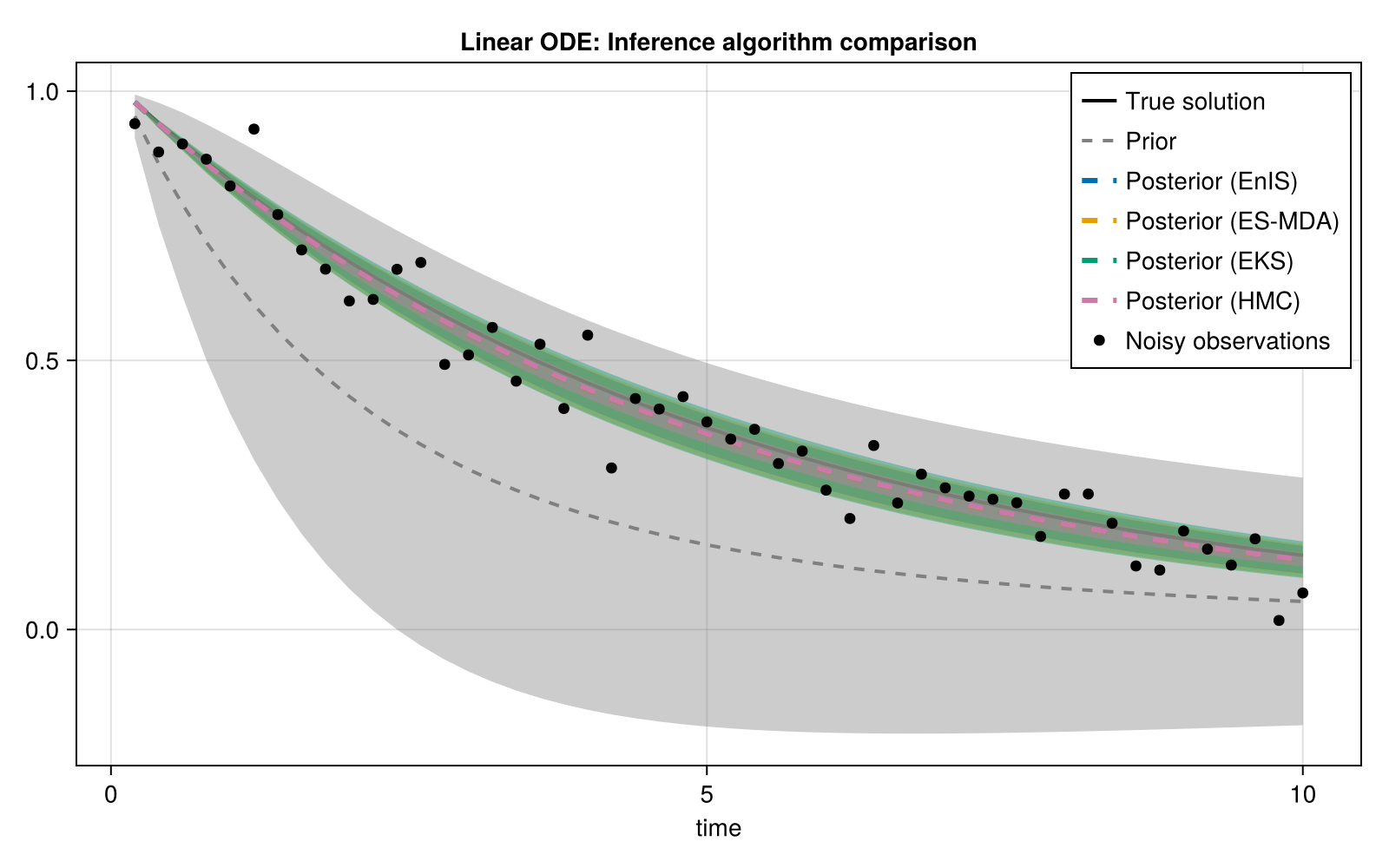

Finally, we can plot the posterior predictions of all of the algorithms and compare.

plot(tsave, true_obs, label="True solution", c=:black, linewidth=2, title="Linear ODE: Inference algorithm comparison", dpi=300, xlabel="time")
plot!(tsave, prior_ens_obs_mean, label="Prior", c=:gray, linestyle=:dash, ribbon=2*prior_ens_obs_std, alpha=0.4, linewidth=2)
plot!(tsave, posterior_obs_mean_enis, label="Posterior (EnIS)", linestyle=:dash, ribbon=2*posterior_obs_std_enis, alpha=0.4, linewidth=3)
plot!(tsave, posterior_obs_mean_esmda, label="Posterior (ES-MDA)", linestyle=:dash, ribbon=2*posterior_obs_std_esmda, alpha=0.4, linewidth=3)
plot!(tsave, posterior_obs_mean_eks, label="Posterior (EKS)", linestyle=:dash, ribbon=2*posterior_obs_std_eks, alpha=0.4, linewidth=3)
plot!(tsave, posterior_obs_mean_hmc, label="Posterior (HMC)", linestyle=:dash, ribbon=2*posterior_obs_std_hmc, alpha=0.4, linewidth=3)
plt = scatter!(tsave, noisy_obs, label="Noisy observations", c=:black)
